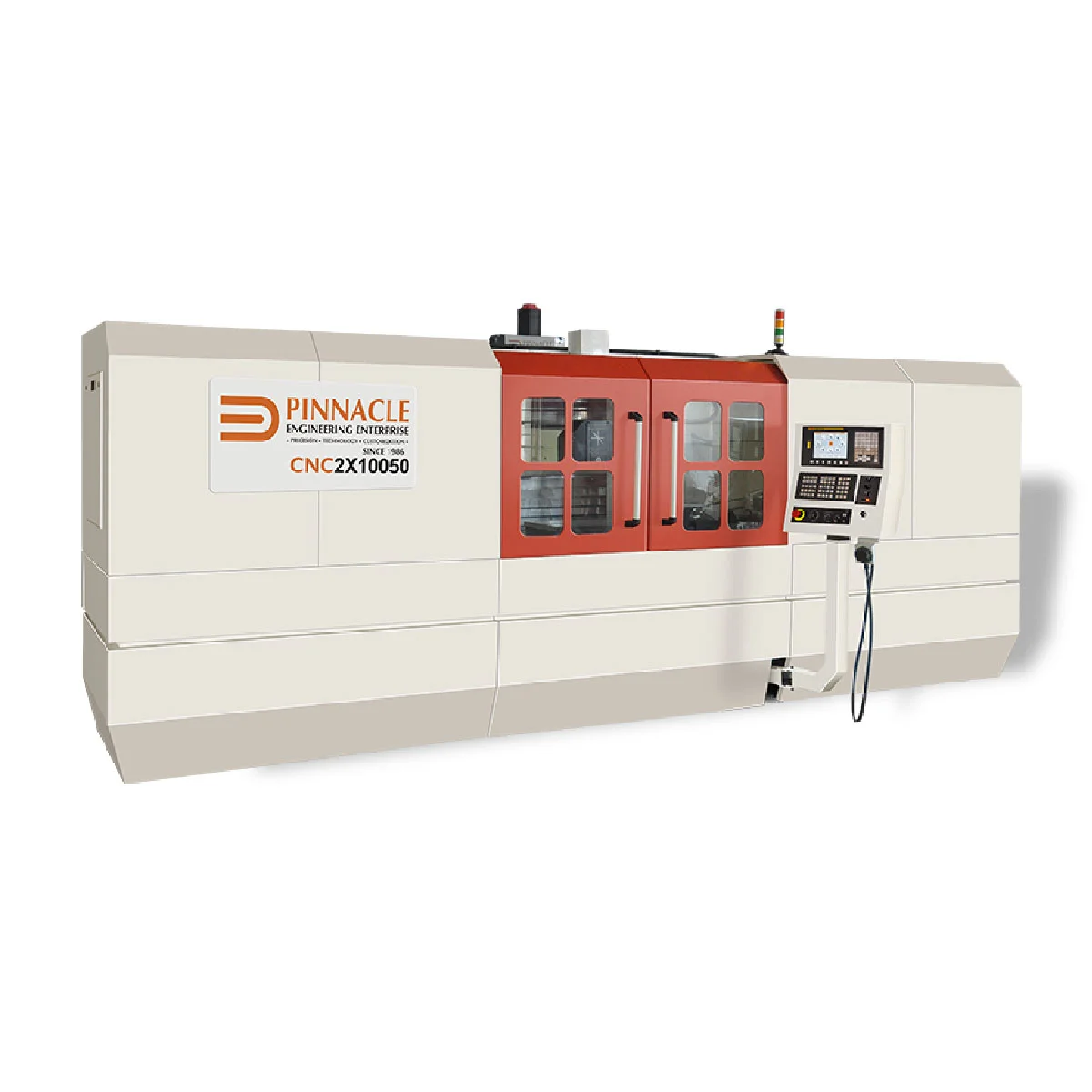

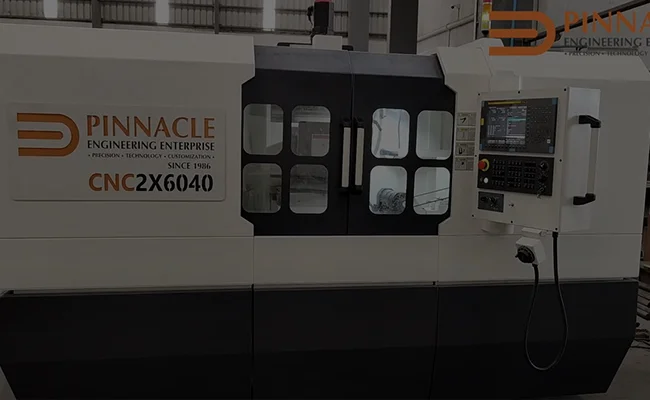

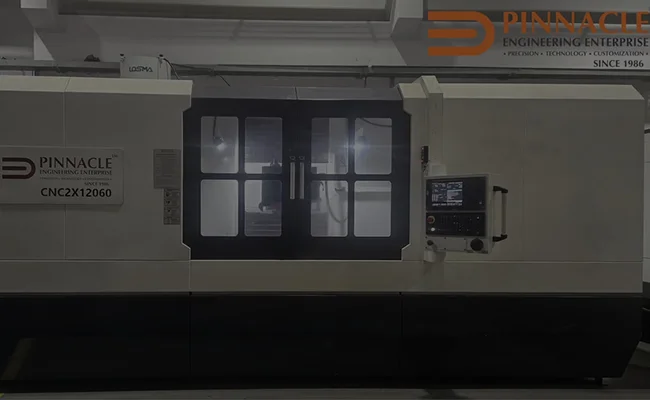

CNC 2X SERIES

CNC 2X SERIES

BRIEF DESCRIPTION

  • Operating CNC Surface grinding machines is very much depended on the operator’s skill of programming, knowledge & experience. But with PINNACLE-make High Precision CNC 2X surface grinding machines, the operating of machines is made simple & precise wherein the operator only needs basic knowledge of surface grinding operation. PINNACLE has developed customized screens which don’t need lengthy programming & programming code skills but only needs to feed in step by step NC data of surface grinding process.

  • The regular developed canned cycles include Step Grinding, Continuous grinding, Plunge grinding & Face grinding. PINNACLE has also developed various Customized canned cycles against customer’s specic requirement.

  • CNC 2X series machines are designed and developed to cater almost all surface grinding applications such as Creep feed grinding & Spline grinding using necessary special attachments/equipments/Jigs/Fixtures.

  • Longitudinal Movement i.e. X-Axis is driven through Hydraulic cylinder with end cushioning device for good damping effects at the end of each Stroke & with solenoid valves for soft table reversals over Precise Ground Prism-Flat guide ways.

  • Vertical Movement i.e. Y-Axis and Cross Movement i.e. Z-Axis is driven by A. C. Servo Motor directly coupled to Ball Screws with Zero backlash Servo Couplings over Precise Ground Prism-Flat guide ways.

  • All the Turcite B-Lined Prism Flat Guide ways / L. M. Guide ways are equipped with Auto Lubrication unit has facility of Re-Circulating Filtration system with Low & High signal and Pressure drop signal for Constant Dust-free Hydro-dynamic flow. It gives high sensitive mechanism to achieve micronic movements with stick-slip free motion.

  • Grinding Spindle-Cartridge is assembled with Imported SUPER PRECISION BEARINGS grease packed with Imported Grease filled for Life for long trouble free service.

  • CNC 2X series High Precision Surface Grinding machines are available from Table size 500 x 250 mm to 3000 x 700 mm.

DOWNLOAD BROCHURE

CNC 2X SERIES CATALOGUE
  • Salient & Functions
  • Standard & Optional Accessories

SALIENT FEATURES

  • Moving Column Design.

  • Seasoned castings.

  • OPTIMUM ribbing for more stability with Maximum vibration Damping capacity.

  • Infinitely variable Incremental Auto Cross Feed.

  • Robust & Sturdy design for precise grinding results over long period of time.

  • Natural Air Cooled Hydraulic Power pack provided separately for easy servicing.

  • Criss Cross grinding provision.

  • Max. Table Speed of 30 m/min.

  • No overhanging in Guide ways.

  • Perfect Squareness of all X,Y & Z Axes.

  • Programmable Auto Cross feed at each table stroke.

  • Auto Dressing with Auto Compensation.

  • 3 Point Chisel Type Diamond Dresser.

  • Centralized Auto Lubrication system in all Axes & Screws.

CNC 2 Axes System's Standard Functions

  • Controlled Y & Z Axes

  • Least command Increment of 0.001 mm

  • Acceleration/Deceleration

  • Feed rate over drive 120%

  • Rapid Positioning

  • Linear Interpolation

  • Circular Interpolation

  • Manual Reference Point Return

  • M. P. G.

  • Dwell

  • Dry Run

  • Single Block

STANDARD ACCESSORIES

  • Grinding wheel

  • Grinding wheel flange unit

  • Wheel balancing mandrel

  • Set of wrenches

  • Table mounted wheel dressing block

  • IS 2743 Test Chart

  • Operating Instruction Manual

  • Grinding wheel clamping & Extraction bolt

  • CNC Package FANUC / Siemens

  • Panel A.C. unit.

  • Coolant system

  • Levelling Pads & Bolts

  • Tower light & Machine light.

  • Variable Spindle Speed.

  • To resolve and overcome your Special Purpose Surface / Profile/ Creep Feed / Spline / Other grinding challenge, write to sales@pinnaclegrinder.com now.

  • Attach your job drawings and Complete Company details to receive a Callback / Reply instantly.

OPTIONAL ACCESSORIES

  • Electro Magnetic Chuck with Electronic Controller to have variable magnetic force & MAG-DEMAG arrangement.

  • Static Wheel Balancing Stand.

  • Magnetic separator / & Paper Band Filter with Coolant system.

  • Vertical Spindle attachment. (Only available for selected Table sizes.)

  • L. M. Guide ways in X-Axis, Y-Axis & Z-Axis.

  • Extra Wheel Flange unit.

  • 3 Point Chisel type Diamond Dresser.

  • Profile Diamond Roll with attachment.

  • Auto Wheel Balancer.

  • Air Gap & crash sensor.

  • Mist collecting unit.

  • Voltage Stabilizer.

  • Isolation Transformer.

  • Radius & Angular Wheel Truing Attachment.

  • Vice – Plain, Sine, Swivel & Universal.

  • Retractable Table mounted Dresser.

  • Auto Indexer.

  • Job Demagnetizer.

  • Dust Collecting Unit.

  • Fully Enclosed Grinding Area.

  • Other possible Customisation.

** PINNACLE reserves the right to modify design, specifications, mechanisms etc. to improve the performance of any machine without notice.

** Photographs shown with Optional accessories.

** All dimensions are in mm.
