PHR 400S | PHR 500S | PHR 600S | PHR 800S

BRIEF DESCRIPTION

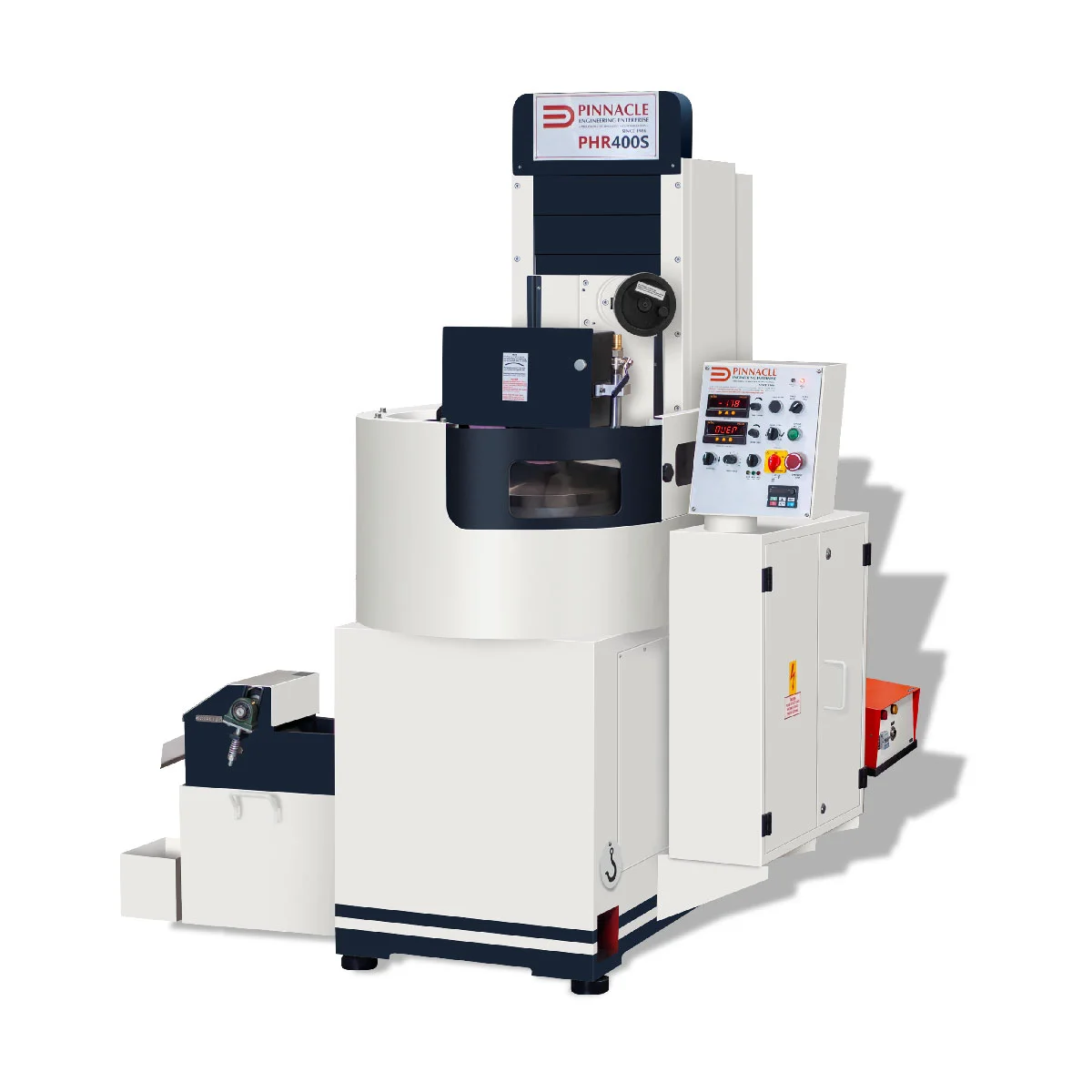

  • PINNACLE-make PHR Semi series machines are Semi Automatic High Precision Horizontal Spindle Rotary Table Surface Grinding machines established on Latest European concept of Column moving design.

  • Rotary Axis i.e. B-Axis is equipped with Hydrodynamic designed Table capable to carry heavy load capacity neglecting the structural wear and inaccuracy caused by rotary wobble.

  • Vertical Axis i.e. Y-Axis is driven by A. C. Induction Motor through Precision Trapezoidal Lead Screw & Nut.

  • Cross (Traverse) Axis i.e. Z-Axis is driven by A. C. Induction motor through Precision Trapezoidal Lead Screw & Nut.

  • Grinding Spindle-Cartridge is assembled with Imported SUPER PRECISION BEARINGS grease packed with Imported Grease filled for Life for long trouble-free service.

  • PHR Semi series machines are mostly used for High Production / Batch Production purpose decreasing a whole lot of dependency on Operators.

  • PHR Semi series machines are used in various Surface Grinding applications of Tool-room, Wood working machinery parts, Diamond Industry, Gear manufacturing, Automobile Industry, Bearing Industry and Pump-Valve Industry.

DOWNLOAD BROCHURE

PHR SEMI SERIES 400S TO 800S CATALOGUE
  • Salient & Key Features
  • Standard & Optional Accessories
  • Technical Specifications
    (PHR SEMI 400S to PHR SEMI 800S)

SALIENT FEATURES

  • Moving Column Design.

  • Naturally seasoned Castings equivalent to Meehanite grade.

  • Robust & Sturdy design for precise grinding results over long period of time.

  • OPTIMUM ribbing for more stability with Maximum vibration Damping capacity.

  • Ergonomic design for simple & easy operating.

  • Precision Ground Guide ways with anti-friction Turcite B-lined material.

  • Infinitely variable Incremental Auto Cross Feed to have desired Surface finish & accuracy in Grinding and desired Dressing.

  • Facility of Auto Cross Feed reversal for Higher production rate.

  • Natural Air Cooled Hydraulic Power pack provided separately for easy servicing.

  • No overhanging in guide ways as per European Column moving design concept.

  • Interlocks on Spindle Rotation/Magnetic Chuck.

KEY FEATURES

  • Max. Table Speed of 100 RPM.

  • Semi-Enclosed Grinding area.

  • VFD in Rotary Table and Cross Feed.

  • Perfect Squareness of all B,Y & Z Axes.

  • Centralized Auto Lubrication system in all Axes & Screws.

  • Hand Wheel with Least Count of 0.002 mm in Y Axis.

STANDARD ACCESSORIES

  • Grinding wheel

  • Grinding wheel flange unit

  • Wheel balancing mandrel

  • Set of necessary wrenches

  • Table mounted wheel dressing block

  • PINNACLE Test Chart

  • Operating Instruction Manual

  • Grinding wheel clamping & Extraction bolt

  • Levelling Pads & Bolts

  • Electro Magnetic chuck with Variable Mag force & MAG-DEMAG.

  • Coolant system

OPTIONAL ACCESSORIES

  • Static Wheel Balancing Stand.

  • Magnetic separator with Coolant system.

  • Magnetic separator and Paper Band Filter with Coolant system.

  • Machine Lamp.

  • Manual Head Wheel Dresser. (L.C. - 0.02 mm)

  • Extra Wheel Flange unit.

  • Variable Spindle Speed.

  • Radius & Angular Wheel Truing Attachment.

  • Vice – Plain, Sine, Swivel & Universal.

  • Job Demagnetizer.

  • Dust Collecting Unit.

  • Mist Collector.

  • Digital Read-Out in Y & Z Axes.

  • Other possible Customisation.

DESCRIPTION UOM PHR 400S PHR 500S PHR 600S PHR 800S
CAPACITY
Working Surface of the Table (Ø) mm 400 500 600 800
Max. Job size that can be Ground (Ø) mm 400 500 600 800
Max. Cross Traverse mm 230 300 350 450
Electro-Magnetic Chuck (Ø x H) mm 400 x 120 500 x 80 600 x 80 800 x 80
Max. Spindle Centre from Table Surface mm 525 750
Max. Job height with new wheel on EMC mm 250 300 300 500
Max. weight carrying capacity of the Table Kgs. 250 300 350 500
SPEEDS & FEEDS
Table Speed (Infinitely variable) RPM 10 to 100 10 to 70
Auto / Power Cross traverse (Innitely Variable) mm/min 30 to 1200
Power Elevation (Rapid Positioning) mm/min 200
Vertical feed graduation (Hand Wheel) mm 0.002
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400
Size of Grinding Wheel (O.D. x Width x I.D.) mm 300 x 25 x 76.2 300 x 40 x 76.2 300 x 50 x 76.2 350 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 3 / 2.2 5 / 3.7 7.5 / 5.5
LUBRICATION UNIT
Lubrication Tank Capacity Litres 30
Working Pressure Kg/cm^2 15
Power of Rotary Table H.P. / kW 2 / 1.5 3 / 2.2
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 6 / 4.5 9 / 6.7 10 / 7.5 13 / 10
Approx. Net Weight of machine Kgs. 1800 2200 2600 3800
Approx. Gross Weight of machine Kgs. 2100 2600 3000 4400

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Opera) C (Height) D (Width)
PHR 400S 1000 600 2000 2100
PHR 500S 1300 2300
PHR 600S 1600 2600
PHR 800S 1900 3000 2400

** PINNACLE reserves the right to modify design, specifications, mechanisms etc. to improve the performance of any machine without notice.

** Photographs shown with Optional accessories.

** All dimensions are in mm.
