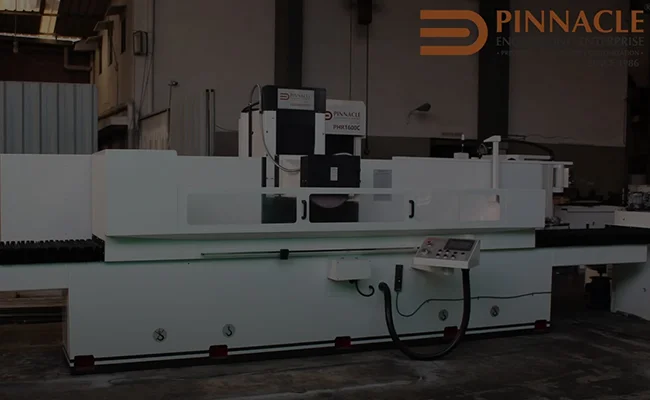

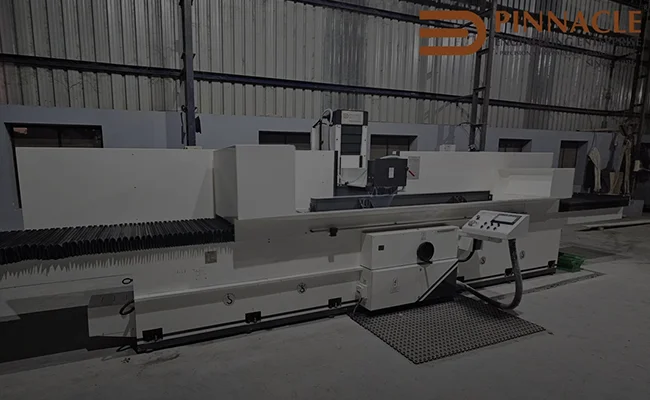

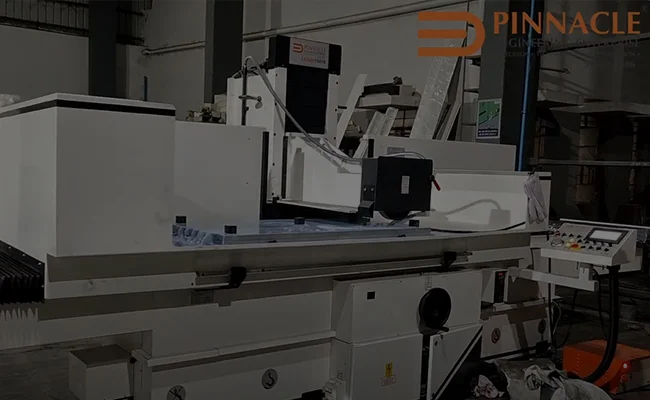

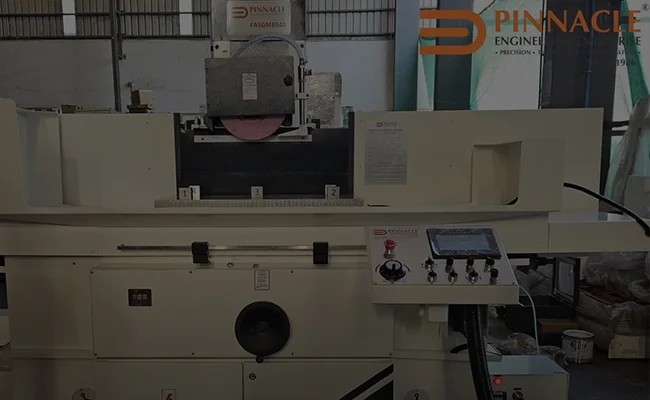

BRIEF DESCRIPTION

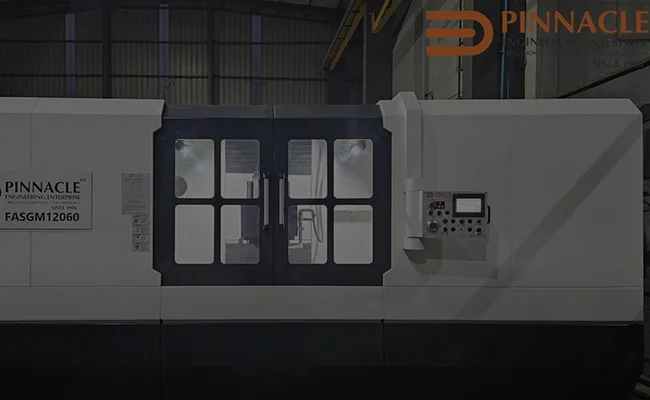

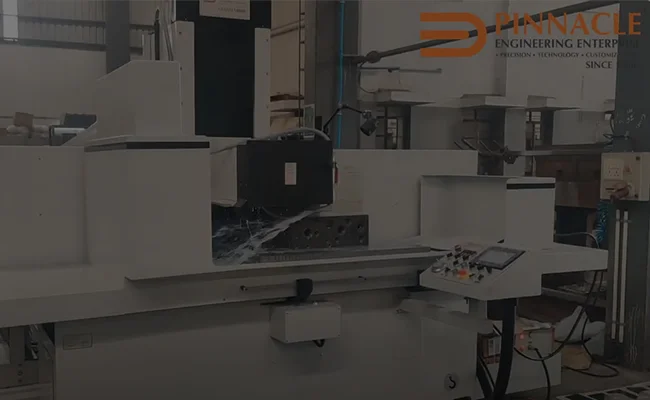

  • PINNACLE-make FASGM series machines are Hydraulic NC-Controlled Fully Automatic High Precision Horizontal Spindle Reciprocating Table Surface Grinding machines established on Latest European concept of Column moving design.

  • Longitudinal Axis i.e. X-Axis is driven by Hydraulic cylinder with END CUSHIONING device for good damping effects at the end of each Stroke & with solenoid valves for soft table reversals.

  • Vertical Axis i.e. Y-Axis is driven by A. C. Servo Motor through Precision Ball Screw & Nut.

  • Cross (Traverse) Axis i.e. Z-Axis is driven by A. C. Induction motor and Drive through Precision Ball Screw & Nut.

  • Grinding Spindle-Cartridge is assembled with Imported SUPER PRECISION BEARINGS grease packed with Imported Grease filled for Life for long trouble-free service.

  • FASGM series provides Automation in all 3 Axes Vertical Programmable Auto Down Feed Feature containing Standard Semi-Auto, Auto & Plunge Grinding Cycles along with innumerable other features on a 7-inch Colour Touch Screen HMI.

  • FASGM series machines are mostly used for High Production / Batch Production purpose decreasing a whole lot of dependency on Operators.

DOWNLOAD BROCHURE

FASGM SERIES 5025 TO 15030 CATALOGUE
FASGM SERIES 6040 TO 15050 CATALOGUE
FASGM SERIES 10060 TO 30060 CATALOGUE
FASGM SERIES 10070 To 30070 CATALOGUE
FASGM SERIES 10080 TO 30080
CATALOGUE
FASGM SERIES 15090 TO 30090
CATALOGUE
FASGM SERIES 12030 TO 30050
CATALOGUE
  • Salient & Key Features
  • Standard & Optional Accessories
  • Technical Specifications
    (FASGM 5025 to 15030)
  • Technical Specifications
    (FASGM 6040 to 15050)
  • Technical Specifications
    (FASGM 10060 to 30060)
  • Technical Specifications
    (FASGM 10070 to 30070)
  • Technical Specifications
    (FASGM 10080 to 30080)
  • Technical Specifications
    (FASGM 15090 to 30090)
  • Technical Specifications
    (FASGM 12030 to 30050)

SALIENT FEATURES

  • Moving Column Design.

  • Naturally seasoned Castings equivalent to Meehanite grade.

  • Robust & Sturdy design for precise grinding results over long period of time.

  • OPTIMUM ribbing for more stability with Maximum vibration Damping capacity.

  • Ergonomic design for simple & easy operating.

  • Precision Ground Guide ways with anti-friction Turcite B-lined material.

  • Infinitely variable Incremental Auto Cross Feed to have desired Surface finish & accuracy in Grinding and desired Dressing.

  • Water Baffles to protect Cross Guide ways from coolant & grinding dust.

  • Natural Air Cooled Hydraulic Power pack provided separately for easy servicing.

  • No overhanging in guide ways as per European Column moving design concept.

  • Auto Parallel Dressing with Auto Compensation (Optional).

  • Interlocks on Spindle Rotation/Magnetic Chuck.

  • Criss Cross (Continuous) Grinding provision for higher material removal in less Cycle time.

KEY FEATURES

  • Max. Table Speed of 28 m/min.

  • Auto Grinding Cycle with Rough, Finish & Spark Out Options.

  • Retract Option, Cycle Hold, Traverse Grinding cycle & Developed Plunge Grinding.

  • Perfect Squareness of all X,Y & Z Axes.

  • Centralized Auto Lubrication system in all Axes & Screws.

  • MPG with Least Count of 0.001 mm in Y Axis.

STANDARD ACCESSORIES

  • Grinding wheel

  • Grinding wheel flange unit

  • Wheel balancing mandrel

  • Set of necessary wrenches

  • Table mounted wheel dressing block

  • IS 2743 Test Chart

  • Operating Instruction Manual

  • Grinding wheel clamping & Extraction bolt

  • Levelling Pads & Bolts

  • Electro Magnetic chuck with Variable Mag force & MAG-DEMAG.

  • Coolant system

OPTIONAL ACCESSORIES

  • Static Wheel Balancing Stand.

  • Magnetic separator with Coolant system.

  • Magnetic separator and Paper Band Filter with Coolant system.

  • Machine Lamp.

  • Manual Head Wheel Dresser. (L.C. - 0.02 mm)

  • Extra Wheel Flange unit.

  • Variable Spindle Speed.

  • Radius & Angular Wheel Truing Attachment.

  • Vice – Plain, Sine, Swivel & Universal.

  • Job Demagnetizer.

  • Dust Collecting Unit.

  • Mist Collector.

  • Digital Read-Out in Y & Z Axes.

  • Auto Parallel Dressing with Auto Compensation.

  • Other possible Customisation.

DESCRIPTION UOM FASGM 5025 FASGM 6030 FASGM 7530 FASGM 10030 FASGM 15030
CAPACITY
Working Surface of the Table (L x W) mm 500 x 250 600 x 300 750 x 300 1000 x 300 1500 x 300
Max. Job size that can be Ground (L x W) mm 500 x 250 600 x 300 750 x 300 1000 x 300 1500 x 300
Max. Longitudinal Trave mm 600 700 850 1100 1600
Max. Cross Traverse mm 280 330
Electro-Magnetic Chuck (L x W x H) mm 500 x 250 x 80 600 x 300 x 80 750 x 300 x 80 1000 x 300 x 80 1500 x 300 x 80
Max. Spindle Centre from Table Surface mm 525
Max. Job height with new wheel on EMC mm 350 300 270
Max. weight carrying capacity of the Table Kgs. 300 360 380 415 520
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 2 to 30 3 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 300
Vertical Auto In-Feed Amount (Settable on HMI) mm 0.001 to 0.1
Vertical feed graduation (MPG) mm 0.001
Cross feed Graduation (Hand Wheel) mm 0.01
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 2800 1400 1400
Size of Grinding Wheel (O.D. x Width x I.D.) mm 200 x 20 x 50.8 300 x 25 x 76.2 350 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 3 / 2.2 5 / 3.7 7.5 / 5.5
HYDRAULIC POWER PACK
Tank Capacity Litres 120 150
Working Pressure Kg/cm^2 15 18
Hydraulic Motor (A.C. Induction) H.P. / kW 2 / 1.5 3 / 2.2
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 6 / 4.5 9 / 6.7 13 / 10
Approx. Net Weight of machine Kgs. 1800 2300 2400 2800 4500
Approx. Gross Weight of machine Kgs. 2400 2900 3000 3500 5400

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Travelling) C (Height) D + E (Width)
FASGM 5025 1800 2400 2100 2400
FASGM 6030 2600 3200
FASGM 7530 2600 3400
FASGM 10030 3500 4500
FASGM 15030 5500 6500 2700

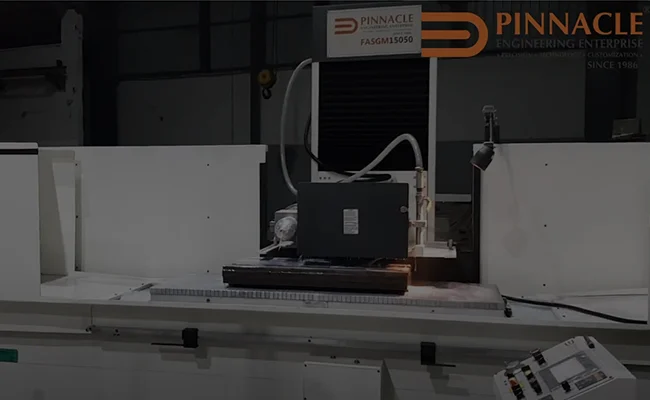

DESCRIPTION UOM FASGM 6040 FASGM 8040 FASGM 10040 FASGM 10050 FASGM 15050
CAPACITY
Working Surface of the Table (L x W) mm 600 x 400 800 x 400 1000 x 400 1000 x 500 1500 x 500
Max. Job size that can be Ground (L x W) mm 600 x 400 800 x 400 1000 x 400 1000 x 500 1500 x 500
Max. Longitudinal Trave mm 700 900 1100 1100 1600
Max. Cross Traverse mm 440 550
Electro-Magnetic Chuck (L x W x H) mm 600 x 400 x 80 800 x 400 x 80 1000 x 400 x 80 1000 x 500 x 80 1500 x 500 x 80
Max. Spindle Centre from Table Surface mm 525 750
Max. Job height with new wheel on EMC mm 300 500 470
Max. weight carrying capacity of the Table Kgs. 390 440 490 580 820
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 2 to 30 3 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 300
Vertical Auto In-Feed Amount (Settable on HMI) mm 0.001 to 0.1
Vertical feed graduation (MPG) mm 0.001
Cross feed Graduation (Hand Wheel) mm 0.01
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400
Size of Grinding Wheel (O.D. x Width x I.D.) mm 300 x 40 x 76.2 350 x 50 x 127 400 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 5 / 3.7 7.5 / 5.5 10 / 7.5
HYDRAULIC POWER PACK
Tank Capacity Litres 150 200
Working Pressure Kg/cm^2 18 20
Hydraulic Motor (A.C. Induction) H.P. / kW 3 / 2.2 5 / 3.7
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 10 / 7.5 13 / 10 18 / 13.5
Approx. Net Weight of machine Kgs. 3800 4000 4200 5100 6500
Approx. Gross Weight of machine Kgs. 4400 4600 4800 5800 7200

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Travelling) C (Height) D + E (Width)
FASGM 6040 2400 3000 2100 2800
FASGM 8040 3500 4100
FASGM 10040 3700 4300
FASGM 10050 3500 4500 2400 2900
FASGM 15050 4800 5600
DESCRIPTION UOM FASGM 10060 FASGM 15060 FASGM 20060 FASGM 25060 FASGM 30060
CAPACITY
Working Surface of the Table (L x W) mm 1000 x 600 1500 x 600 2000 x 600 2500 x 600 3000 x 600
Max. Job size that can be Ground (L x W) mm 1000 x 600 1500 x 600 2000 x 600 2500 x 600 3000 x 600
Max. Longitudinal Trave mm 1100 1600 2100 2600 3100
Max. Cross Traverse mm 650
Electro-Magnetic Chuck (L x W x H) mm 1000 x 600 x 80 1500 x 600 x 80 2000 x 600 x 80 2500 x 600 x 80 3000 x 600 x 80
Max. Spindle Centre from Table Surface mm 750
Max. Job height with new wheel on EMC mm 500 470 420
Max. weight carrying capacity of the Table Kgs. 750 950 1250 1400 1800
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 2 to 30 3 to 30 5 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 300
Vertical Auto In-Feed Amount (Settable on HMI) mm/min 0.001 to 0.1
Vertical feed graduation (MPG) mm 0.001
Cross feed Graduation (Hand Wheel) mm 0.01
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400 960
Size of Grinding Wheel (O.D. x Width x I.D.) mm 350 x 50 x 127 400 x 50 x 127 500 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 7.5 / 5.5 10 / 7.5 15 / 11
HYDRAULIC POWER PACK
Tank Capacity Litres 150 200 400
Working Pressure Kg/cm^2 18 20 25
Hydraulic Motor (A.C. Induction) H.P. / kW 3 / 2.2 3 / 2.2 7.5 / 5.5
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 13 / 10 18 / 13.5 25 / 19
Approx. Net Weight of machine Kgs. 5500 6800 8000 9400 11000
Approx. Gross Weight of machine Kgs. 6200 7600 8900 10500 12400

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Travelling) C (Height) D + E (Width)
FASGM 10060 4000 4700 2400 3200
FASGM 15060 5600
FASGM 20060 6800
FASGM 25060 7300
FASGM 30060 8700
DESCRIPTION UOM FASGM 10070 FASGM 15070 FASGM 20070 FASGM 25070 FASGM 30070
CAPACITY
Working Surface of the Table (L x W) mm 1000 x 700 1500 x 700 2000 x 700 2500 x 700 3000 x 700
Max. Job size that can be Ground (L x W) mm 1000 x 700 1500 x 700 2000 x 700 2500 x 700 3000 x 700
Max. Longitudinal Trave mm 1100 1600 2100 2600 3100
Max. Cross Traverse mm 750
Electro-Magnetic Chuck (L x W x H) mm 1000 x 700 x 80 1500 x 700 x 80 2000 x 700 x 80 2500 x 700 x 80 3000 x 700 x 80
Max. Spindle Centre from Table Surface mm 750
Max. Job height with new wheel on EMC mm 470 420
Max. weight carrying capacity of the Table Kgs. 1000 1400 1800 2200 2600
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 2 to 30 3 to 30 5 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 300
Vertical Auto In-Feed Amount (Settable on HMI) mm 0.001 to 0.1
Vertical feed graduation (MPG) mm 0.001
Cross feed Graduation (Hand Wheel) mm 0.01
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400 960
Size of Grinding Wheel (O.D. x Width x I.D.) mm 400 x 50 x 127 500 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 10 / 7.5 15 / 11
HYDRAULIC POWER PACK
Tank Capacity Litres 200 400
Working Pressure Kg/cm^2 20 25
Hydraulic Motor (A.C. Induction) H.P. / kW 5 / 3.7 7.5 / 5.5
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 18 / 13.5 25 / 19
Approx. Net Weight of machine Kgs. 6100 7600 9100 10600 12400
Approx. Gross Weight of machine Kgs. 6900 8500 10100 11800 14000

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Travelling) C (Height) D + E (Width)
FASGM 10070 4000 4700 2400 3300
FASGM 15070 5600
FASGM 20070 6800
FASGM 25070 7300
FASGM 30070 8700

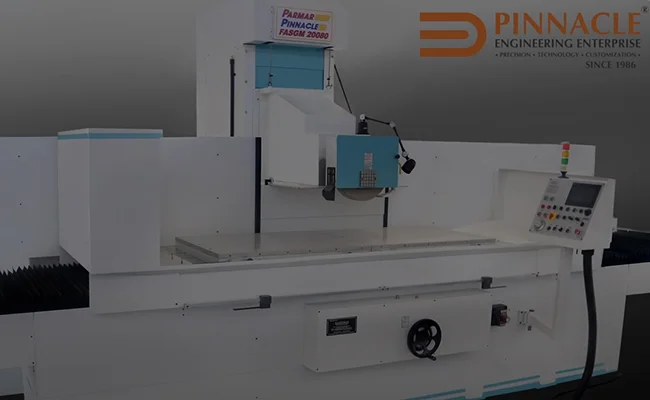

DESCRIPTION UOM FASGM 10080 FASGM 15080 FASGM 20080 FASGM 25080 FASGM 30080
CAPACITY
Working Surface of the Table (L x W) mm 1000 x 800 1500 x 800 2000 x 800 2500 x 800 3000 x 800
Max. Job size that can be Ground (L x W) mm 1000 x 800 1500 x 800 2000 x 800 2500 x 800 3000 x 800
Max. Longitudinal Trave mm 1100 1600 2100 2600 3100
Max. Cross Traverse mm 850
Electro-Magnetic Chuck (L x W x H) mm 1000 x 800 x 80 1500 x 800 x 80 2000 x 800 x 80 2500 x 800 x 80 3000 x 800 x 80
Max. Spindle Centre from Table Surface mm 750
Max. Job height with new wheel on EMC mm 420
Max. weight carrying capacity of the Table Kgs. 1500 1900 2300 2800 3000
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 3 to 30 5 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 300
Vertical Auto In-Feed Amount (Settable on HMI) mm 0.001 to 0.1
Vertical feed graduation (MPG) mm 0.001
Cross feed Graduation (Hand Wheel) mm 0.001
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 960
Size of Grinding Wheel (O.D. x Width x I.D.) mm 500 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 15 / 11
HYDRAULIC POWER PACK
Tank Capacity Litres 400 600
Working Pressure Kg/cm^2 25 30
Hydraulic Motor (A.C. Induction) H.P. / kW 7.5 / 5.5 10 / 7.5
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 25 / 19 28 / 21
Approx. Net Weight of machine Kgs. 11000 13000 15500 18000 20000
Approx. Gross Weight of machine Kgs. 12500 14800 17500 20500 23000

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Travelling) C (Height) D + E (Width)
FASGM 10080 4000 4700 2800 3900
FASGM 15080 5600
FASGM 20080 6800
FASGM 25080 7300
FASGM 30080 8700

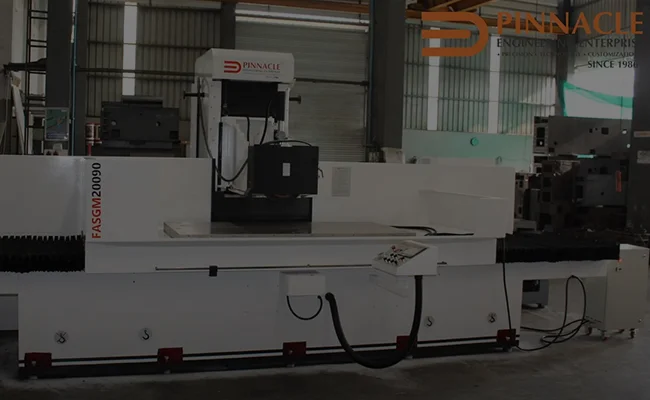

DESCRIPTION UOM FASGM 15090 FASGM 20090 FASGM 25090 FASGM 30090
CAPACITY
Working Surface of the Table (L x W) mm 1500 x 900 2000 x 900 2500 x 900 3000 x 900
Max. Job size that can be Ground (L x W) mm 1500 x 900 2000 x 900 2500 x 900 3000 x 900
Max. Longitudinal Trave mm 1600 2100 2500 3100
Max. Cross Traverse mm 950
Electro-Magnetic Chuck (L x W x H) mm 1500 x 900 x 80 2000 x 900 x 80 2500 x 900 x 80 3000 x 900 x 80
Max. Spindle Centre from Table Surface mm 750
Max. Job height with new wheel on EMC mm 420
Max. weight carrying capacity of the Table Kgs. 1900 2300 2800 3100
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 3 to 30 5 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 300
Vertical Auto In-Feed Amount (Settable on HMI) mm 0.001 to 0.1
Vertical feed graduation (MPG) mm 0.001
Cross feed Graduation (MPG) mm 0.001
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 960
Size of Grinding Wheel (O.D. x Width x I.D.) mm 500 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 15 / 11
HYDRAULIC POWER PACK
Tank Capacity Litres 400 600
Working Pressure Kg/cm^2 25 30
Hydraulic Motor (A.C. Induction) H.P. / kW 7.5 / 5.5 10 / 7.5
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 25 / 19 28 / 21
Approx. Net Weight of machine Kgs. 14000 16500 19500 22000
Approx. Gross Weight of machine Kgs. 15800 18500 21500 25000

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Travelling) C (Height) D + E (Width)
FASGM 15090 5600 2800 4000
FASGM 20090 6800
FASGM 25090 7300
FASGM 30090 8700
DESCRIPTION UOM FASGM 12030 FASGM 12050 FASGM 20050 FASGM 25050 FASGM 30050
CAPACITY
Working Surface of the Table (L x W) mm 1200 x 300 1200 x 500 2000 x 500 2500 x 500 3000 x 500
Max. Job size that can be Ground (L x W) mm 1200 x 300 1200 x 500 2000 x 500 2500 x 500 3000 x 500
Max. Longitudinal Trave mm 1300 1300 2100 2600 3100
Max. Cross Traverse mm 340 550
Electro-Magnetic Chuck (L x W x H) mm 1200 x 300 x 80 1200 x 500 x 80 2000 x 500 x 80 2500 x 500 x 80 3000 x 500 x 80
Max. Spindle Centre from Table Surface mm 525 750
Max. Job height with new wheel on EMC mm 300 500 470 420
Max. weight carrying capacity of the Table Kgs. 440 630 1000 1300 1600
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 2 to 30 5 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 300
Vertical Auto In-Feed Amount (Settable on HMI) mm 0.001 to 0.1
Vertical feed graduation (MPG) mm 0.001
Cross feed Graduation (Hand Wheel) mm 0.01
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400 960
Size of Grinding Wheel (O.D. x Width x I.D.) mm 300 x 40 x 76.2 350 x 50 x 127 400 x 50 x 127 500 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 5 / 3.7 7.5 / 5.5 10 / 7.5 15 / 11
HYDRAULIC POWER PACK
Tank Capacity Litres 120 150 200 400
Working Pressure Kg/cm^2 15 18 20 25
Hydraulic Motor (A.C. Induction) H.P. / kW 2 / 1.5 3 / 2.2 5 / 3.7 7.5 / 5.5
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 9 / 6.7 13 / 10 18 / 13.5 25 / 19
Approx. Net Weight of machine Kgs. 3100 5400 8000 9500 11000
Approx. Gross Weight of machine Kgs. 3800 6100 8800 10400 12000

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Travelling) C (Height) D + E (Width)
FASGM 12030 4000 4700 2100 2400
FASGM 12050 4500 5200 2400 3100
FASGM 20050 6800
FASGM 25050 7300
FASGM 30050 8700

** PINNACLE reserves the right to modify design, specifications, mechanisms etc. to improve the performance of any machine without notice.

** Photographs shown with Optional accessories.

** All dimensions are in mm.
