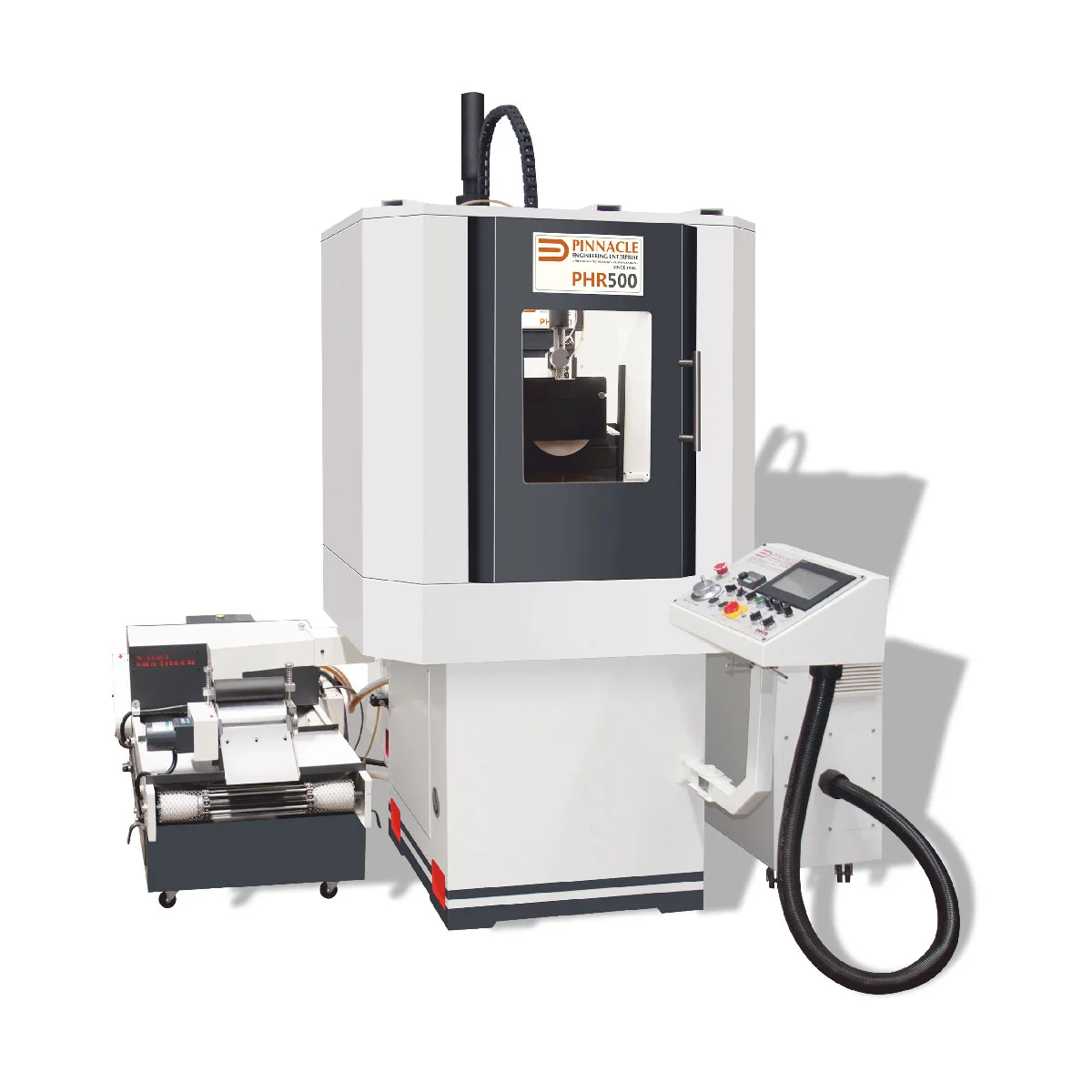

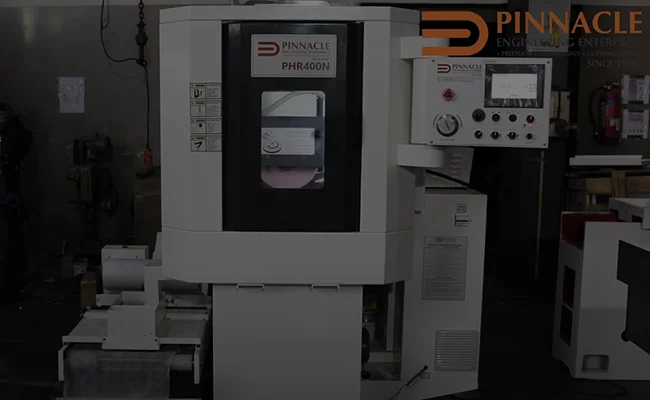

PHR 500N | PHR 600N | PHR 800N | PHR 1100N | PHR 1500N

BRIEF DESCRIPTION

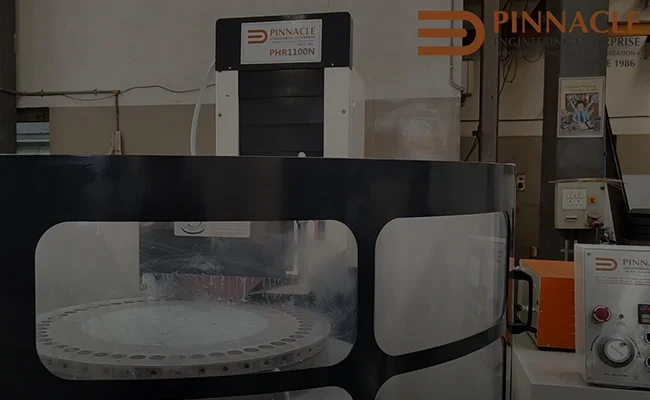

  • PINNACLE-make PHR NC series machines are NC-Controlled Fully Automatic High Precision Horizontal Spindle Rotary Table Surface Grinding machines established on Latest European concept of Column moving design.

  • Rotary Axis i.e. B-Axis is equipped with Hydrodynamic designed Table capable to carry heavy load capacity neglecting the structural wear and inaccuracy caused by rotary wobble.

  • Vertical Axis i.e. Y-Axis is driven by A. C. Servo Motor through Precision Ball Screw & Nut.

  • Cross (Traverse) Axis i.e. Z-Axis is driven by A. C. Induction motor and Drive through Precision Ball Screw & Nut.

  • Grinding Spindle-Cartridge is assembled with Imported SUPER PRECISION BEARINGS grease packed with Imported Grease filled for Life for long trouble-free service.

  • PHR NC series machines are mostly used for High Production / Batch Production purpose decreasing a whole lot of dependency on Operators.

  • PHR NC series machines are used in various Surface Grinding applications of Tool-room, Wood working machinery parts, Diamond Industry, Gear manufacturing, Automobile Industry, Bearing Industry and Pump-Valve Industry.

DOWNLOAD BROCHURE

PHR NC SERIES 500N TO 1500N CATALOGUE
  • Salient & Key Features
  • Standard & Optional Accessories
  • Technical Specifications
    (PHR NC 500N to PHR NC 1500N)

SALIENT FEATURES

  • Moving Column Design.

  • Naturally seasoned Castings equivalent to Meehanite grade.

  • Robust & Sturdy design for precise grinding results over long period of time.

  • OPTIMUM ribbing for more stability with Maximum vibration Damping capacity.

  • Ergonomic design for simple & easy operating.

  • Precision Ground Guide ways with anti-friction Turcite B-lined material.

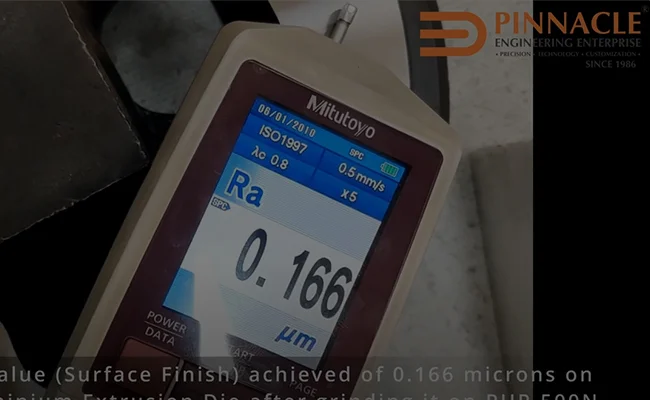

  • Infinitely variable Incremental Auto Cross Feed to have desired Surface finish & accuracy in Grinding and desired Dressing.

  • Separate Auto Cross Feed Pot for both Rough and Finish Grinding cycles.

  • Natural Air Cooled Lubrication unit provided separately for easy servicing.

  • No overhanging in guide ways as per European Column moving design concept.

  • Interlocks on Spindle Rotation/Magnetic Chuck.

KEY FEATURES

  • Fully Enclosed Grinding area.

  • Auto Grinding Cycle with Rough, Finish & Spark Out Options.

  • Retract Option, Cycle Hold & Traverse Grinding cycle

  • Perfect Squareness of all B,Y & Z Axes.

  • Centralized Auto Lubrication system in all Axes & Screws.

  • MPG with Least Count of 0.001 mm in Y Axis.

STANDARD ACCESSORIES

  • Grinding wheel

  • Grinding wheel flange unit

  • Wheel balancing mandrel

  • Set of necessary wrenches

  • Table mounted wheel dressing block

  • PINNACLE Test Chart

  • Operating Instruction Manual

  • Grinding wheel clamping & Extraction bolt

  • Levelling Pads & Bolts

  • Electro Magnetic chuck with Variable Mag force & MAG-DEMAG.

  • Coolant system

OPTIONAL ACCESSORIES

  • Static Wheel Balancing Stand.

  • Magnetic separator with Coolant system.

  • Magnetic separator and Paper Band Filter with Coolant system.

  • Machine Lamp.

  • Manual Head Wheel Dresser. (L.C. - 0.02 mm)

  • Extra Wheel Flange unit.

  • Variable Spindle Speed.

  • Radius & Angular Wheel Truing Attachment.

  • Vice – Plain, Sine, Swivel & Universal.

  • Job Demagnetizer.

  • Dust Collecting Unit.

  • Mist Collector.

  • Digital Read-Out in Y & Z Axes.

  • A. C. Servo Motor in Z-Axis

  • Other possible Customisation.

DESCRIPTION UOM PHR 500N PHR 600N PHR 800N PHR 1100N PHR 1500N
CAPACITY
Working Surface of the Table (Ø) mm 500 600 800 1100 1500
Max. Job size that can be Ground (Ø) mm 500 600 800 1100 1500
Max. Cross Traverse mm 300 350 450 600 800
Electro-Magnetic Chuck (Ø x H) mm 500 x 80 600 x 80 800 x 80 1100 x 80 1500 x 80
Max. Spindle Centre from Table Surface mm 525 750
Max. Job height with new wheel on EMC mm 300 500 470 420
Max. weight carrying capacity of the Table Kgs. 300 350 500 700 900
SPEEDS & FEEDS
Table Speed (Infinitely variable) RPM 10 to 100 10 to 70 10 to 50 10 to 30
Power Cross traverse (Innitely Variable) mm/min 30 to 1200
Power Elevation (Rapid Positioning) mm/min 300
Vertical feed graduation (MPG) mm 0.001
Vertical In-Feed Amount (Settable on HMI) mm 0.001 to 0.1
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400 960
Size of Grinding Wheel (O.D. x Width x I.D.) mm 300 x 40 x 76.2 300 x 50 x 76.2 350 x 50 x 127 400 x 50 x 127 500 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 5 / 3.7 7.5 / 5.5 10 / 7.5 15 / 11
LUBRICATION UNIT
Lubrication Tank Capacity Litres 30 40 60
Working Pressure Kg/cm^2 15 18 20
Power of Rotary Table H.P. / kW 2 / 1.5 3 / 2.2 5 / 3.7 7.5 / 5.5
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 9 / 6.7 10 / 7.5 13 / 10 18 / 13.5 25 / 19
Approx. Net Weight of machine Kgs. 2200 2600 3800 7000 11000
Approx. Gross Weight of machine Kgs. 2700 3100 4600 8000 13000

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Width) C (Operating) D (Height)
PHR 500N 2200 1700 600 2100
PHR 600N 2500 2000
PHR 800N 2700 2600 2400
PHR 1100N 3800 3400
PHR 1500N 4400 4400

** PINNACLE reserves the right to modify design, specifications, mechanisms etc. to improve the performance of any machine without notice.

** Photographs shown with Optional accessories.

** All dimensions are in mm.
