PHR CNC SERIES

PHR 500C | PHR 600C | PHR 800C | PHR 1100C | PHR 1500C

Brief Description About CNC Rotary Surface Grinder

  • PINNACLE is one of the superior companies in manufacturing rotary surface grinders. CNC Rotary Surface Grinder manufacturers are designed to use the full potential of rotary surface grinding, which has numerous advantages over rotary table grinding.

  • A CNC rotary machine is an automatically controlled grinding machine. This machine is responsible for the final surface treatment of finished metal products and the removal of material from the workpiece with grinding wheels.

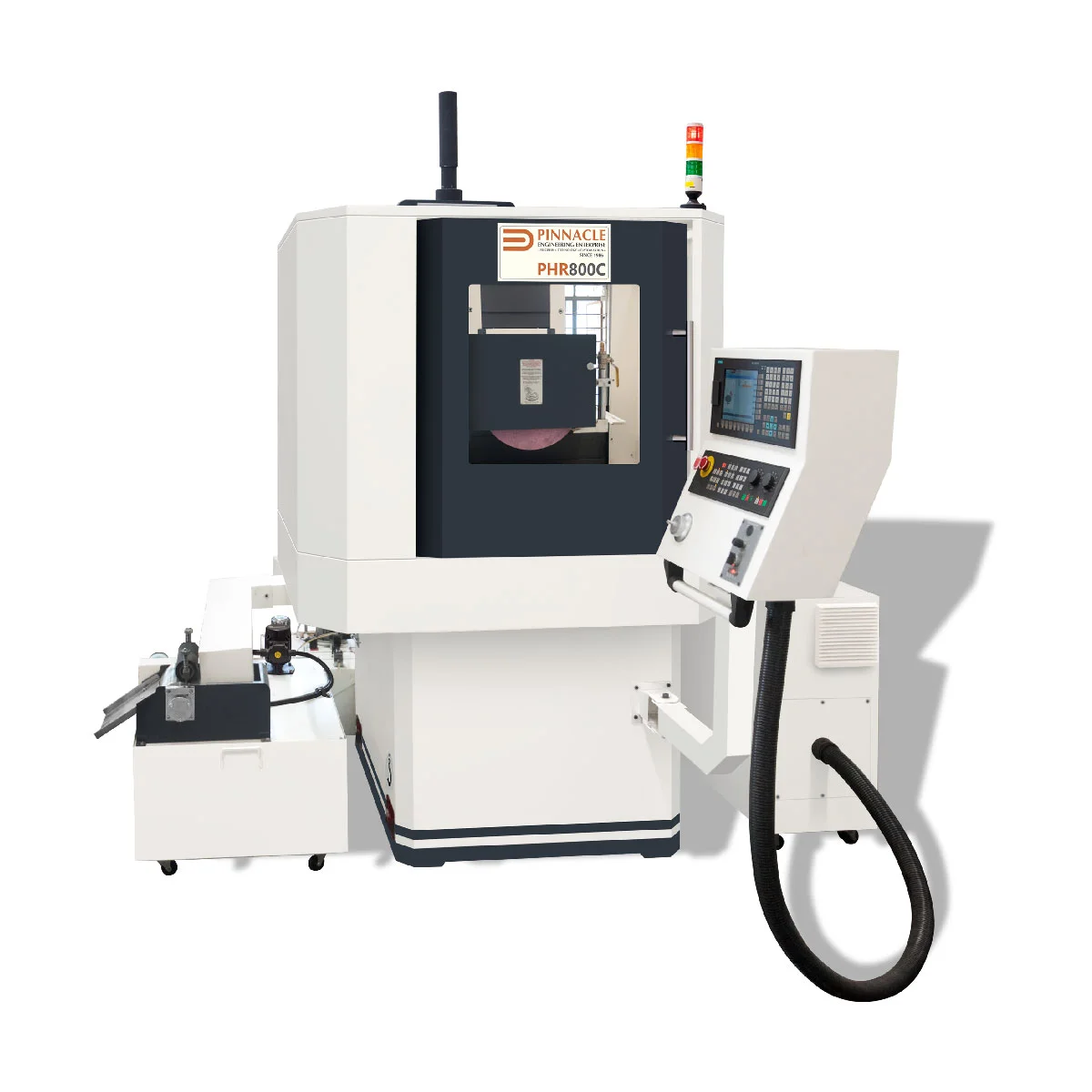

  • The Pinnacle PHR series CNC machines are CNC-Controlled high-precision surface grinding machines with rotary tables and horizontal spindles, based on the latest European column motion concept.

  • A hydrodynamic table is provided that is designed to carry heavy loads on the rotating axis, i.e., on the B-Axis, ignoring structural wear and impurities due to rotational oscillations.

  • Vertical Axis, i.e., the Air-Axis, is driven by an AC servo motor via ball screws and double precision nuts.

  • Cross (Traverse) Axis: The Z-Axis drives AC. The servo motor screws it through precision ball screws and double nuts.

  • The grinding spindle cartridge is equipped with durable imported SUPER PRECISION BEARINGS and fully imported grease for long, trouble-free operation.

  • The PHR CNC Rotary Surface Grinder manufacturers are mainly used for high efficiency/mass production purposes, significantly reducing operator dependence.

  • The PHR NC series machines are used in a variety of applications such as tool shop grinding, woodworking machine parts, diamond industry, gear manufacturing, automotive industry, and bearing and pump industries.

Download CNC Rotary Surface Grinder Brochure

PHR CNC SERIES 500C TO 1500C CATALOGUE
  • Salient & Key Features
  • Standard & Optional Accessories
  • Technical Specifications
    (PHR NC 500C to PHR NC 1500C)

Salient Features of CNC Rotary Surface Grinder

  • CNC Rotary Surface Grinder has movable column design.

  • Naturally seasoned castings equal to mehanite quality.

  • Optimal ribs for maximum stability with maximum vibration damping capacity.

  • Have straight ground vertical and transverse guides.

  • All 3 axles are coated with Turcite B-coated anti-friction material.

  • Central automatic lubrication and recirculation filter system.

  • Automatic grinding cycles with rough, finish, fine, and spark grinding cycles.

  • Have spindle rotation or magnetic spindle blocks.

  • Rotary servo motor with ball screw for Y-axis and Z-axis ensures accurate and precise control.

  • Comes with automatic compensation and automatic parallel connection.

  • Provide various cross feeds in raw, finishing, and finishing cycles.

  • Has choice of vertical cutting depths inside, outside, and on both sides of the table.

  • During the CNC Rotary Surface Grinder, all critical messages/alarms related to critical factors such as coolant and lubricants are clearly displayed on the MOP.

Key Features

  • Completely enclosed grinding.

  • Automatic CNC Rotary Surface Grinder with automatic adjustment and automatic compensation.

  • Innovative technology with automatically constant surface speed in an automatic grinding cycle.

  • Complete quadrature for all b, y, and z axes.

  • Designed for simple, non-standard grinding and handling.

  • Electronic wheel with minimum value of 0.001 mm in Y and Z axes.

STANDARD ACCESSORIES

  • Grinding wheel

  • Grinding wheel flange unit

  • Wheel balancing mandrel

  • Machine Lamp

  • Set of necessary wrenches

  • Table mounted wheel dressing block

  • PINNACLE Test Chart

  • Variable Spindle Speed

  • Operating Instruction Manual

  • Grinding wheel clamping & Extraction bolt

  • Levelling Pads & Bolts

  • VFD in Rotary Table

  • Electro Magnetic chuck with Variable Mag force & MAG-DEMAG.

  • Coolant system

OPTIONAL ACCESSORIES

  • Static Wheel Balancing Stand.

  • Magnetic separator with Coolant system.

  • Magnetic separator and Paper Band Filter with Coolant system.

  • Tilting Rotary Table

  • Extra Wheel Flange unit.

  • Radius & Angular Wheel Truing Attachment.

  • Vice – Plain, Sine, Swivel & Universal.

  • Job Demagnetizer.

  • Dust Collecting Unit.

  • Mist Collector.

  • Auto lift of Spindle in event of Power failure.

  • Other possible Customisation.

DESCRIPTION UOM PHR 500C PHR 600C PHR 800C PHR 1100C PHR 1500C
CAPACITY
Working Surface of the Table (Ø) mm 500 600 800 1100 1500
Max. Job size that can be Ground (Ø) mm 500 600 800 1100 1500
Max. Cross Traverse mm 300 350 450 600 800
Electro-Magnetic Chuck (Ø x H) mm 500 x 80 600 x 80 800 x 80 1100 x 80 1500 x 80
Max. Spindle Centre from Table Surface mm 525 750
Max. Job height with new wheel on EMC mm 300 500 470 420
Max. weight carrying capacity of the Table Kgs. 300 350 500 700 900
SPEEDS & FEEDS
Table Speed (Infinitely variable) RPM 10 to 100 10 to 70 10 to 50 10 to 30
Auto Cross traverse (Innitely Variable) mm/rev 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 3000
Vertical feed graduation (MPG) mm 0.001
Vertical In-Feed Amount (Settable on MOP) mm 0.001 to 0.1
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400 960
Size of Grinding Wheel (O.D. x Width x I.D.) mm 300 x 40 x 76.2 300 x 50 x 76.2 350 x 50 x 127 400 x 50 x 127 500 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 5 / 3.7 7.5 / 5.5 10 / 7.5 15 / 11
LUBRICATION UNIT
Lubrication Tank Capacity Litres 30 40 60
Working Pressure Kg/cm^2 15 18 20
Power of Rotary Table H.P. / kW 2 / 1.5 3 / 2.2 5 / 3.7 7.5 / 5.5
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 12 / 9 13 / 10 16 / 12 22 / 16.5 30 / 22
Approx. Net Weight of machine Kgs. 2200 2600 3800 7000 11000
Approx. Gross Weight of machine Kgs. 2800 3200 4700 8200 13300

MACHINE DIMENSIONS

CNC Rotary Surface Grinder Machine Dimensions
MACHINE MODEL A (Length) B (Width) C (Operating) D (Height)
PHR 500C 2500 1900 600 2400
PHR 600C 2800 2200
PHR 800C 3100 2900 2800
PHR 1100C 4200 3900
PHR 1500C 4800 5200

CNC Rotary Surface Grinder manufacturers are ideal for automated part handling, making it an excellent solution for production milling. CNC is designed for large-diameter components that require precise flatness tolerances and is typically used for Hydraulic Surface Grinding Machine surface grinding such as rings, gears, and seals.

** PINNACLE reserves the right to modify design, specifications, mechanisms etc. to improve the performance of any machine without notice.

** Photographs shown with Optional accessories.

** All dimensions are in mm.
