PVR CNC SERIES


PVR CNC SERIES

PVR 500C | PVR 800C | PVR 1100C | PVR 1500C

BRIEF DESCRIPTION

  • PINNACLE-make PVR CNC series machines are CNC-Controlled High Precision Vertical Spindle Rotary Table Surface Grinding machines.

  • Rotary Axis i.e. C-Axis is equipped with Hydrodynamic designed Table capable to carry heavy load capacity neglecting the structural wear and inaccuracy caused by rotary wobble.

  • Vertical Axis i.e. Z-Axis is driven by A. C. Servo Motor through Precision Double Nut Ball Screw & Nut.

  • Grinding Spindle-Cartridge is assembled with Imported SUPER PRECISION BEARINGS grease packed with Imported Grease filled for Life for long trouble-free service.

  • PVR CNC series machines are mostly used for High Production purpose decreasing a whole lot of dependency on Operators.

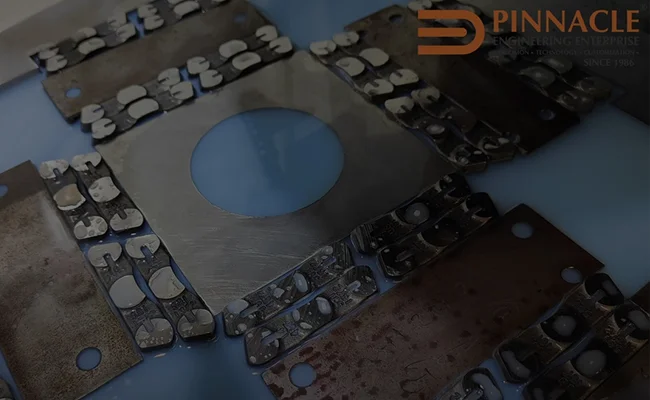

  • PVR CNC series machines are used in various Surface Grinding applications of Tool-room, Wood working machinery parts, Gear manufacturing, Automobile Industry, Refractories, Toolings Industry, Pipeline Industry, Bearing Industry and Pump-Valve Industry.

DOWNLOAD BROCHURE

PVR CNC SERIES CATALOGUE

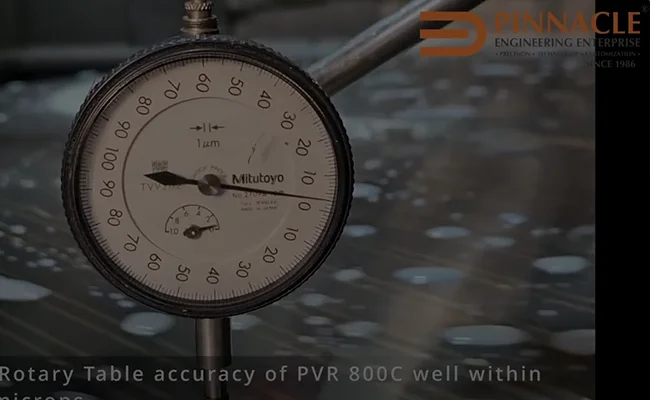

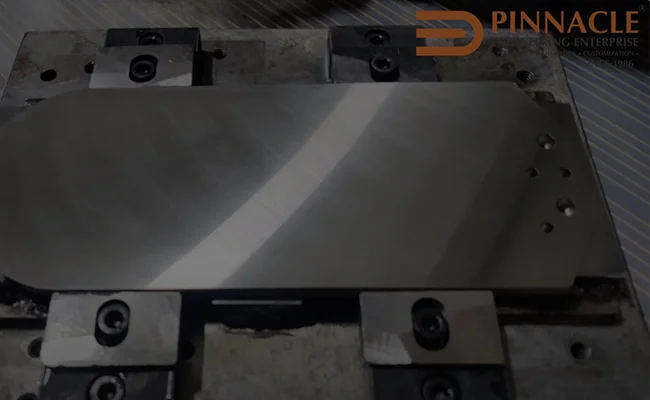

WATCH VIDEO (PVR 500C)

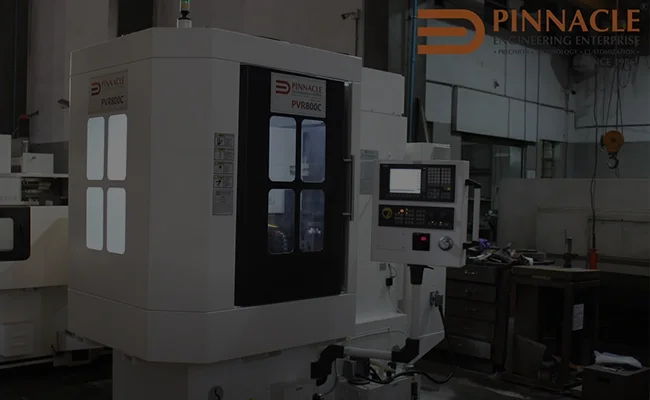

WATCH VIDEO (PVR 800C)
WATCH VIDEO (PVR 800C)
WATCH VIDEO (PVR 1100C)
  • Salient & Key Features
  • Standard & Optional Accessories
  • Technical Specifications
    (PVR NC 500C to PHR NC 1500C)

SALIENT FEATURES

  • Naturally seasoned Castings equivalent to Meehanite grade.

  • OPTIMUM ribbing for more stability with Maximum vibration damping capacity.

  • Precision Ground Vertical Guide ways.

  • Both Axes coated with anti-friction Turcite B-lined material.

  • Auto Grinding cycle equipped with Rough, Finish & Spark out Grinding cycles.

  • Interlocks on Spindle Rotation/Magnetic Chuck.

  • A.C. Servo Drive with Double ended Ball Screw for Z-Axis for accurate & precise controls.

  • Equipped with developed Auto Grinding cycles.

  • Each & every important messages/alarms during the Auto Grinding cycle regarding important factors like Coolant & Lubrication is clearly mentioned in the MOP.

KEY FEATURES

  • Developed cycle for taking easy Grinding offsets.

  • Fully-Enclosed Grinding area.

  • Variable Frequency Drive in Rotary Table.

  • Perfect Squareness of all C & Z Axes.

  • Centralized Auto Lubrication system in all Axes & Screws.

  • Electronic Hand Wheel with Least Count of 0.001 mm in Z Axis.

STANDARD ACCESSORIES

  • Grinding wheel Segments.

  • Segments flange unit.

  • Coolant Gun.

  • Set of necessary wrenches.

  • Dressing unit with L.C. of 0.05 mm.

  • PINNACLE Test Chart.

  • Operating Instruction Manual.

  • Segment Wheel Flange Tightening Nut.

  • Levelling Pads & Bolts.

  • Electro Permanent Magnetic chuck with Variable Mag force & MAG-DEMAG.

  • Coolant system with all necessary attachments.

OPTIONAL ACCESSORIES

  • Magnetic Separator with Coolant system.

  • Paper band Filter with Coolant system.

  • EXTRA Wheel Flange for Cup Wheel.

  • EXTRA Wheel Flange for Diamond Nibs.

  • Dust Collecting unit.

  • Mist Collector.

  • Auto lift of Spindle in event of Power failure.

  • Variable Frequency Spindle Drive.

  • EXTRA Job Height up to 500 mm.

  • Other possible Customization.

DESCRIPTION UOM PVR 500C PVR 800C PVR 1100C PPVR 1500C
Max. Job size that can be Ground (L x W)* mm 500 800 1100 1500
Max. Job height with new wheel on EMC* mm 230
Max. weight carrying capacity of the Table* Kgs. 300 500 800 1200
Table Speed (Infinitely variable)* m/min 10 to 30 10 to 20 5 to 10
Vertical feed graduation (Hand Wheel)* mm 0.001
Segmental Grinding Wheel Diameter* mm 300 450 600 800
No. of Segments / Set* Nos. 6 8 10 14
Grinding Wheel Head Motor (A. C. Induction)* H.P. / kW 15 / 11 25 / 19 30 / 22.5 75 / 56
Tank Capacity* Litres 30
TOTAL Power (3 Phase / 415 Volts / 50 Hz)* H.P. / kW 20 / 15 32 / 24 40 / 30 90 / 67.5
Approx. Gross Weight of machine* Kgs. 4900 6500 9000 19,000
Working Dimensions of Machine (L x W x H)* mm 2500 x 3100 x 2400 3000 x 3300 x 2400 3300 x 3600 x 2400 4500 x 4500 x 3000

MACHINE DIMENSIONS

MACHINE MODEL A (Length) B (Operating) C (Width) D (Height)
PVR 500C 1600 700 2500 2400
PVR 800C 1900 2900
PVR 1100C 2300 3200
PVR 1500C 2900 3700

** PINNACLE reserves the right to modify design, specifications, mechanisms etc. to improve the performance of any machine without notice.

** Photographs shown with Optional accessories.

** All dimensions are in mm.
