High Precision Surface
Grinder Machine

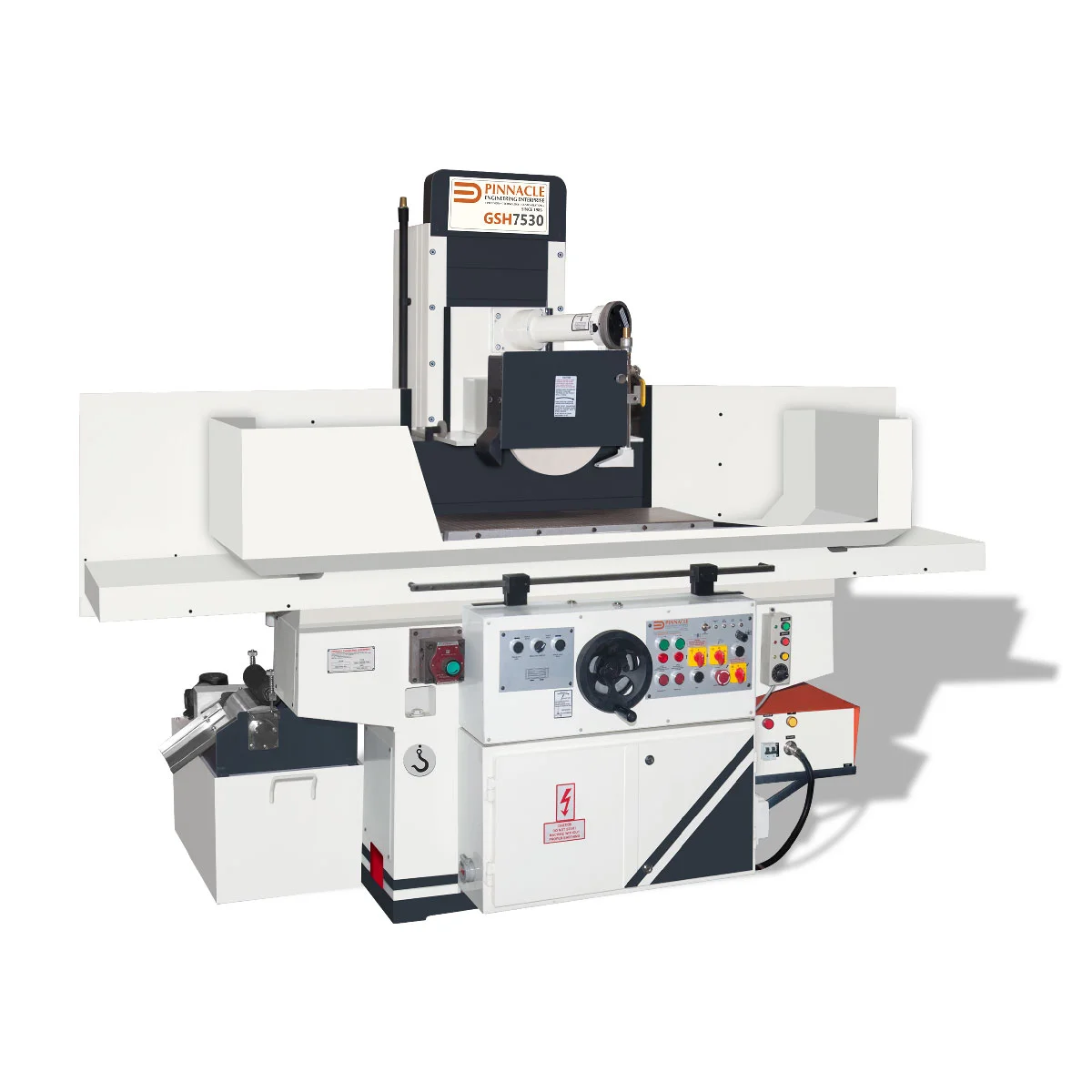

High Precision Surface Grinder
High Precision Surface Grinder

GSH SERIES

CATALOGUE 1 - GSH 5025 | GSH 6030 | GSH 7530 | GSH 10030 | GSH 15030
CATALOGUE 2 - GSH 6040 | GSH 8040 | GSH 10040 | GSH 10050 | GSH 15050
CATALOGUE 3 - GSH 12030 | GSH 12050 | GSH 20050 | GSH 25050 | GSH 30050

Brief Description About High Precision Surface Grinder Machine

  • Are you looking for a Precision Surface Grinder that delivers the superior surface finish with precision and effectiveness? Then you are at the right place. The machine has a high seat design and unique features that make it ideal for precision grinding.

  • A High Precision Surface Grinder Machine is a tool or device used to remove material by making partial cuts. It uses an abrasive particle machining process to remove material from the surface of the part.

  • Pinnacle manufactures the Precision Surface Grinder series of machines. They are hydraulic, semi-automatic, high precision surface grinders with rotating tables and horizontal spindles, based on the latest European column moving design concept.

  • The longitudinal axis, i.e., the X-Axis, is moved by a hydraulic cylinder with a FINAL CUSHION device that ensures good damping at the end of each stroke and with solenoid valves for soft tilting of the table.

  • The Vertical Axis that is. The Y-Axis is moved by an AC. Induction motor with trapezoidal screws and nuts with a minimum accuracy of 0.002 mm.

  • The cross (traverse) axis, the Z-Axis, is driven by an AC induction motor and a precision trapezoidal lead screw and nut.

  • Grinding Spindle: The cartridge is filled with imported SUPER PRECISION BEARINGS grease, filled with imported lifetime grease for long, trouble-free operation.

  • GSH series offers 2-axis automation, namely X-axis and Z-axis with high-speed positioning and manual vertical depth of cut (Y-axis).

  • High Precision Surface Grinding Machines are primarily used for equipment manufacturing needs.

Download High Precision Surface Grinder Machine Brochure

GSH SERIES 5025 TO 15030 CATALOGUE
GSH SERIES 6040 TO 15050 CATALOGUE
GSH SERIES 12030 TO 30050 CATALOGUE
  • Salient & Key Features
  • Standard & Optional Accessories
  • Technical Specifications
    (GSH 5025 to 15030)
  • Technical Specifications
    (GSH 6040 to 15050)
  • Technical Specifications
    (GSH 12030 to 30050)

Salient Features of High Precision Surface Grinder Machine

  • A high precision surface grinding machine is designed with moving columns.

  • Naturally flavored melts are equivalent to mechanise quality.

  • Strong, durable construction ensures long-term straight cymbal performance.

  • High precision Surface Grinding Machine Manufacturers provide excellent brackets for maximum stability and maximum vibration damping.

  • Ergonomic design for ease of use and comfort.

  • Accurate ground control shape with Turcite B-lined material.

  • Continuously changing incremental automatic cross feed to achieve desired soil quality and required construction and mechanical accuracy.

  • Water deflectors protect the transverse control module from coolant and crumbling dust.

  • Naturally cooled water is supplied separately for ease of maintenance.

  • As with the European column design concept, the driving modes are not mutually exclusive.

Key Features

  • Max. Table Speed: 30 m/min.

  • Imported bearings with precise performance and filled with lifetime oil.

  • Interconnect on spindle rotation or magnetic spindle blocks.

  • All X, Y, and Z axes have perfect quadrature.

  • Central automatic lubrication system on all shafts and propellers.

STANDARD ACCESSORIES

  • Grinding wheel

  • Grinding wheel flange unit

  • Wheel balancing mandrel

  • Set of necessary wrenches

  • Table mounted wheel dressing block

  • IS 2743 Test Chart

  • Operating Instruction Manual

  • Grinding wheel clamping & Extraction bolt

  • Levelling Pads & Bolts

  • Electro Magnetic chuck with Variable Mag force & MAG-DEMAG.

  • Coolant system

OPTIONAL ACCESSORIES

  • Static Wheel Balancing Stand.

  • Magnetic separator with Coolant system.

  • Magnetic separator and Paper Band Filter with Coolant system.

  • Machine Lamp.

  • Manual Head Wheel Dresser.

  • Extra Wheel Flange unit.

  • Variable Spindle Speed.

  • Radius & Angular Wheel Truing Attachment.

  • Vice – Plain, Sine, Swivel & Universal.

  • Job Demagnetizer.

  • Dust Collecting Unit.

  • Mist Collector.

  • Digital Read-Out in Y & Z Axes.

  • Other possible Customisation.

DESCRIPTION UOM GSH 5025 GSH 6030 GSH 7530 GSH 10030 GSH 15030
CAPACITY
Working Surface of the Table (L x W) mm 500 x 250 600 x 300 750 x 300 1000 x 300 1500 x 300
Max. Job size that can be Ground (L x W) mm 500 x 250 600 x 300 750 x 300 1000 x 300 1500 x 300
Max. Longitudinal Trave mm 600 700 850 1100 1600
Max. Cross Traverse mm 280 330 350
Electro-Magnetic Chuck (L x W x H) mm 500 x 250 x 80 600 x 300 x 80 750 x 300 x 80 1000 x 300 x 80 1500 x 300 x 80
Max. Spindle Centre from Table Surface mm 525
Max. Job height with new wheel on EMC mm 350 300 270
Max. weight carrying capacity of the Table Kgs. 300 360 380 420 520
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 2 to 30 3 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 200
Vertical feed graduation (Hand Wheel) mm 0.002
Cross feed Graduation (Hand Wheel) mm 0.01
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 2800 1400 1400
Size of Grinding Wheel (O.D. x Width x I.D.) mm 200 x 20 x 50.8 300 x 25 x 76.2 350 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 3 / 2.2 5 / 3.7 7.5 / 5.5
HYDRAULIC POWER PACK
Tank Capacity Litres 120 150
Working Pressure Kg/cm^2 15 18
Hydraulic Motor (A.C. Induction) H.P. / kW 2 / 1.5 3 / 2.2
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 6 / 4.5 9 / 6.7 13 / 10
Approx. Net Weight of machine Kgs. 1800 2300 2400 2800 4800
Approx. Gross Weight of machine Kgs. 2400 2900 3000 3500 5500

MACHINE DIMENSIONS

High Precision Surface Grinder Machine Dimensions
MACHINE MODEL A (Length) B (Travelling) C (Height) D (Width)
GSH 5025 1800 2400 2100 2000
GSH 6030 2600 3200
GSH 7530 2600 3400
GSH 10030 3500 4500
GSH 15030 5500 6500 2300
DESCRIPTION UOM GSH 6040 GSH 8040 GSH 10040 GSH 10050 GSH 15050
CAPACITY
Working Surface of the Table (L x W) mm 600 x 400 800 x 400 1000 x 400 1000 x 500 1500 x 500
Max. Job size that can be Ground (L x W) mm 600 x 400 800 x 400 1000 x 400 1000 x 500 1500 x 500
Max. Longitudinal Trave mm 700 900 1100 1100 1600
Max. Cross Traverse mm 440 550
Electro-Magnetic Chuck (L x W x H) mm 600 x 400 x 80 800 x 400 x 80 1000 x 400 x 80 1000 x 500 x 80 1500 x 500 x 80
Max. Spindle Centre from Table Surface mm 525 750
Max. Job height with new wheel on EMC mm 300 500 470
Max. weight carrying capacity of the Table Kgs. 390 440 490 580 820
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 2 to 30 3 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 200
Vertical feed graduation (Hand Wheel) mm 0.002
Cross feed Graduation (Hand Wheel) mm 0.01
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400
Size of Grinding Wheel (O.D. x Width x I.D.) mm 300 x 40 x 76.2 350 x 50 x 127 400 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 5 / 3.7 7.5 / 5.5 10 / 7.5
HYDRAULIC POWER PACK
Tank Capacity Litres 150 200
Working Pressure Kg/cm^2 18 20
Hydraulic Motor (A.C. Induction) H.P. / kW 3 / 2.2 5 / 3.7
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 10 / 7.5 13 / 10 18 / 13.5
Approx. Net Weight of machine Kgs. 3800 4000 4200 5100 6500
Approx. Gross Weight of machine Kgs. 4400 4600 4800 5800 7200

MACHINE DIMENSIONS

High Precision Surface Grinder Machine Dimensions
MACHINE MODEL A (Length) B (Travelling) C (Height) D (Width)
GSH 6040 2400 3000 2100 2500
GSH 8040 3500 4100
GSH 10040 3700 4300
GSH 10050 4000 4700 2400 2500
GSH 15050 4800 5600
DESCRIPTION UOM GSH 12030 GSH 12050 GSH 20050 GSH 25050 GSH 30050
CAPACITY
Working Surface of the Table (L x W) mm 1200 x 300 1200 x 500 2000 x 500 2500 x 500 3000 x 500
Max. Job size that can be Ground (L x W) mm 1200 x 300 1200 x 500 2000 x 500 2500 x 500 3000 x 500
Max. Longitudinal Trave mm 1300 1300 2100 2600 3100
Max. Cross Traverse mm 340 550
Electro-Magnetic Chuck (L x W x H) mm 1200 x 300 x 80 1200 x 500 x 80 2000 x 500 x 80 2500 x 500 x 80 3000 x 500 x 80
Max. Spindle Centre from Table Surface mm 525 750
Max. Job height with new wheel on EMC mm 300 500 470 420
Max. weight carrying capacity of the Table Kgs. 450 630 1000 1300 1600
SPEEDS & FEEDS
Table Speed (Infinitely variable) m/min 2 to 30 5 to 30
Power Cross traverse (Infinitely Variable) mm/min 120 to 1200
Auto cross feed at each table reversal (Variable) mm 0.5 to 20
Power Elevation (Rapid Positioning) mm/min 200
Vertical feed graduation (Hand Wheel) mm 0.002
Cross feed Graduation (Hand Wheel) mm 0.01
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400 960
Size of Grinding Wheel (O.D. x Width x I.D.) mm 300 x 40 x 76.2 350 x 50 x 127 400 x 50 x 127 500 x 50 x 127
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 5 / 3.7 7.5 / 5.5 10 / 7.5 15 / 11
HYDRAULIC POWER PACK
Tank Capacity Litres 120 150 200 400
Working Pressure Kg/cm^2 15 18 20 25
Hydraulic Motor (A.C. Induction) H.P. / kW 2 / 1.5 3 / 2.2 5 / 3.7 7.5 / 5.5
Type of Hydraulic Power Pack Natural Air Cooled, Solenoid Operated with facility to have soft Table reversal along with End cushioning.
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 9 / 6.7 13 / 10 18 / 13.5 25 / 19
Approx. Net Weight of machine Kgs. 3100 5400 8000 9500 11000
Approx. Gross Weight of machine Kgs. 3800 6100 8800 10400 12000

MACHINE DIMENSIONS

High Precision Surface Grinder Machine Dimensions
MACHINE MODEL A (Length) B (Travelling) C (Height) D (Width)
GSH 12030 4000 4700 2100 2000
GSH 12050 4500 5200 2400 2500
GSH 20050 6800
GSH 25050 7300
GSH 30050 8700

Thus, the High Precision Surface Grinder Machine helps to maintain the smooth surface of the processed material. This gives the part a refined and excellent look. The right tool for the right job can help improve productivity. In addition, it saves the time and energy of professionals and specialists.

** PINNACLE reserves the right to modify design, specifications, mechanisms etc. to improve the performance of any machine without notice.

** Photographs shown with Optional accessories.

** All dimensions are in mm.
