Vertical Spindle Rotary
Table Surface Grinder

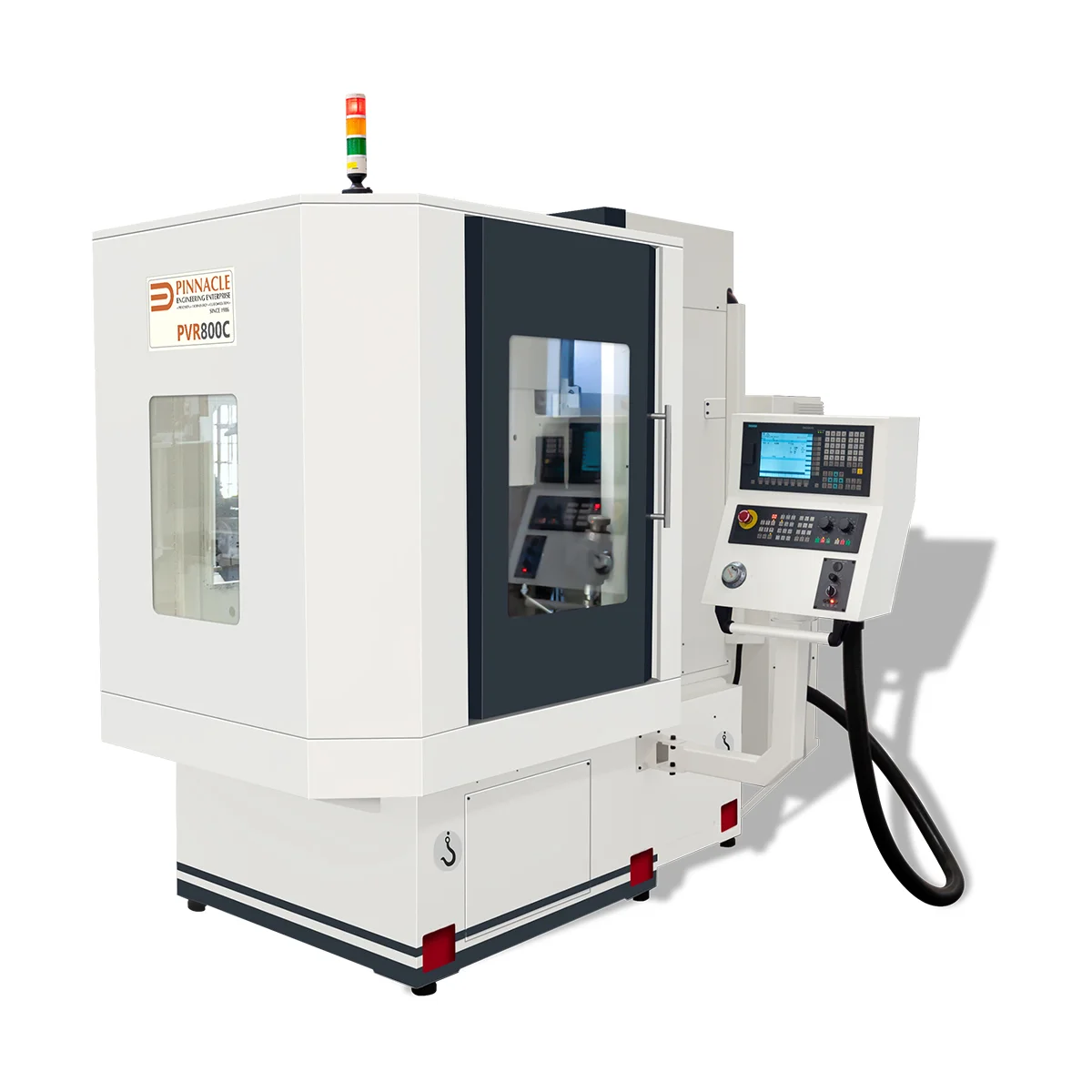

Vertical Spindle Rotary Table Grinder

PVR CNC SERIES

PVR 500C | PVR 800C | PVR 1100C | PVR 1500C

Brief Description About Vertical Spindle Rotary Table Surface Grinder

  • PINNACLE-make PVR CNC series machines are CNC-Controlled High Precision Vertical Spindle Rotary Table Surface Grinding machines, designed for superior performance and reliability. These machines are ideal for those seeking a top-notch Vertical Rotary Surface Grinder.

  • Rotary Axis i.e. C-Axis is equipped with a hydrodynamic-designed table capable of carrying heavy load capacities, eliminating structural wear and inaccuracies caused by rotary wobble. This makes the PVR CNC Surface Grinding Machine series an excellent choice for a Vertical Rotary Surface Grinding machine.

  • Vertical Axis i.e. Z-Axis is driven by A. C. Servo Motor through Precision Double Nut Ball Screw & Nut.

  • Grinding Spindle-Cartridge is assembled with Imported SUPER PRECISION BEARINGS grease packed with Imported Grease filled for Life to guarantee long, trouble-free service. This meticulous construction ensures the PVR CNC series stands out as a premier Vertical Spindle Rotary Table Grinder.

  • PVR CNC series machines are provided by PINNACLE, leading Vertical Rotary Surface Grinding Machine manufacturers. They are primarily used for high production purposes, significantly reducing operator dependency.

  • PVR CNC series machines are used in various Surface Grinding applications of Tool-room, Wood working machinery parts, Gear manufacturing, Automobile Industry, Refractories, Toolings Industry, Pipeline Industry, Bearing Industry and Pump-Valve Industry.

Download Vertical Rotary Surface Grinding Machine Brochure

PVR CNC SERIES 500C TO 1500C CATALOGUE
  • Salient & Key Features
  • Standard & Optional Accessories
  • Technical Specifications
    (PVR NC 500C to PHR NC 1500C)

Salient Features of Vertical Rotary Surface Grinding Machine

  • Naturally seasoned Castings equivalent to Meehanite grade.

  • OPTIMUM ribbing for more stability with Maximum vibration damping capacity.

  • Precision Ground Vertical Guide ways.

  • Both Axes coated with anti-friction Turcite B-lined material.

  • Auto Grinding cycle equipped with Rough, Finish & Spark out Grinding cycles.

  • Interlocks on Spindle Rotation/Magnetic Chuck.

  • A.C. Servo Drive with Double ended Ball Screw for Z-Axis for accurate & precise controls.

  • Equipped with developed Auto Grinding cycles.

  • Each & every important messages/alarms during the Auto Grinding cycle regarding important factors like Coolant & Lubrication is clearly mentioned in the MOP.

Key Features

  • Developed cycle for taking easy Grinding offsets.

  • Fully-Enclosed Grinding area.

  • Variable Frequency Drive in Rotary Table.

  • Perfect Squareness of all C & Z Axes.

  • Centralized Auto Lubrication system in all Axes & Screws.

  • Electronic Hand Wheel with Least Count of 0.001 mm in Z Axis.

STANDARD ACCESSORIES

  • Grinding wheel Segments

  • Segments flange unit

  • Coolant Gun

  • Set of necessary wrenches

  • Dressing unit with L.C. of 0.05 mm.

  • PINNACLE Test Chart

  • Operating Instruction Manual

  • Segment Wheel Flange Tightening Nut

  • Levelling Pads & Bolts

  • Electro Magnetic chuck with Variable Mag force & MAG-DEMAG.

  • Coolant system

OPTIONAL ACCESSORIES

  • Magnetic Separator with Coolant system.

  • Magnetic Separator & Paper band Filter with Coolant system.

  • Wheel Flange for Cup Wheel.

  • Wheel Flange for Diamond Nibs.

  • Vice - Plain, Sine, Swivel & Universal.

  • Demagnetizer.

  • Dust Collecting Unit.

  • Mist Collector.

  • Auto lift of Spindle in event of Power failure.

  • Other possible Customisation.

DESCRIPTION UOM PVR 500C PVR 800C PVR 1100C PPVR 1500C
CAPACITY
Working Surface of the Table (Ø) mm 500 800 1100 1500
Max. Job size that can be Ground (Ø) mm 500 800 1100 1500
Electro-Magnetic Chuck (Ø x H) mm 500 x 80 800 x 80 1100 x 80 1500 x 80
Max. Wheel Clearance (Table Top to Wheel Flange Bottom) mm 350
Max. Job height on Electro-Magnetic chuck with mm 230
Max. weight carrying capacity of the Table Kgs. 300 500 700 900
SPEEDS & FEEDS
Table Speed (Infinitely variable) RPM 10 to 30 10 to 20 5 to 10
Power Elevation (Rapid Positioning) mm/rev 300
Vertical feed graduation (Hand Wheel) mm 0.001
Vertical Auto In-Feed Amount (Settable on MOP) mm 0.001 to 0.01
GRINDING WHEEL HEAD
Speed of Grinding Wheel RPM 1400 960 750 450
Segmental Grinding Wheel Diameter mm 300 450 600 800
No. of Segments / set Nos. 6 8 10 14
Grinding Wheel Head Motor (A.C. Induction) H.P. / kW 15 / 11 25 / 19 30 / 22.5 75 / 56
LUBRICATION UNIT
Lubrication Tank Capacity Litres 30 40
Working Pressure Kg/cm^2 15 18
Power of Rotary Table H.P. / kW 2 / 1.5 3 / 2.2 5 / 3.7 7.5 / 5.5
GENERAL
TOTAL Power (3 Phase / 415 Volts / 50 Hz) H.P. / kW 20 / 15 32 / 24 40 / 30 90 / 67.5
Approx. Net Weight of machine Kgs. 3800 5300 7300 13500
Approx. Gross Weight of machine Kgs. 4900 6500 9000 17000

MACHINE DIMENSIONS

Vertical Spindle Rotary Table Grinder Machine Dimensions
MACHINE MODEL A (Length) B (Operating) C (Width) D (Height)
PVR 500C 1600 700 2500 2400
PVR 800C 1900 2900
PVR 1100C 2300 3200
PVR 1500C 2900 3700

** PINNACLE reserves the right to modify design, specifications, mechanisms etc. to improve the performance of any machine without notice.

** Photographs shown with Optional accessories.

** All dimensions are in mm.
